220626 - 10 000km!!!!

 My bike has now worked for 10 000km.

This is  a big milestone!!

I now look at the bike as "paid of". From now on I ride very cheap.

Fantastic feeling!!

My target was to do a big service when i reached 10 000km.

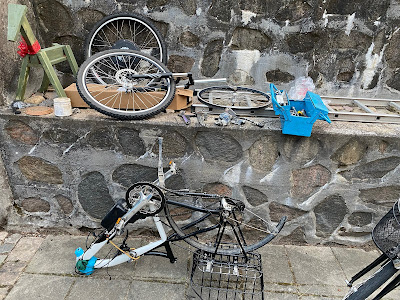

So I did! I took it apart.

I then replaced the following parts:

Rear sprocket cassette

Chain

Front fork (old one was completely worn out)

Front wheel (Bearings were totally worn out)

Now it feels like a new bike again.

During startup I had some problems with this error....

I manage to find that this is a hall sensor error but the problem is more or less never the sensor...

I bought some electrical cleaning liquid and cleaned all the connections for the cable between the controller and the motor.

After that it has been ok. Hope that it will continue like that :-)

Now I am waiting for the winter so that the bike will start to continue its life after 10 000km!!!!

200208 NEW BRAKES ON THE E-BIKE 7598km

Since my last big renovation of the bike it has been running very smooth.
I hardly havent done anything for a year now. Nice!!!
Still the bike has don 7598kms now!!

I ride my home built fast E-bike in the summer so this one had quite a relaxed summer :-)

The only thing that makes me a little bit irritaded nowadays are the brakes....
Every week I have to adjust the shitty wire-discbrakes.  Completely worthless!!!!
This is how the handles looks at the end of the week....

Zero braking power.......

Because of that I ordered hydraulic brakes on Ali express. XOD brakes.
They are now mounted on the bike and they are fantastic!!!!
Right connections and amazing power!!!
Looking forward to test them over time!!

They were only possible to order:
Right=front
Left=Rear.

I didnt like that so I reconnected them.

Left=Front
Right=Rear.

Hopefullt I can enjoy riding instead of setting the brakes :-)
---------------------------------------------------------------------------------------

Price 15 000 Sek-Refund from the swedish gouvernment 3500kr= 11500kr

Battery 48V 17h 3980kr
Mudguard 100 Sek
Lock 50 Sek
Saddle 100Sek
Tyre 80 Sek¨
Hose 40 Sek
Break pads 120 Sek
Extender steering bar 100sek
Tyre+hose 180sek
Front lamp 90sek
New front lamp Biltema 140 Sek
2 Suomi spiked tyres 800Sek
Rear view mirror 350kr
Tyre 125 Sek
Chain (Biltema nr 27404) 50kr
Rear sprockets 116 kr (Aliexpress)
Rear rim 277kr
Derallieur 166kr
Pedals 109kr
Hydraulic brakes, front and rear 560kr
Parts total: 7533Sek

#stealth 1000w Cyclotricity

190319 COMPLETELY WORN OUT......4749KM

Here we go again :-(
The winter went just fine.
I tried the bike during the toughest conditions with very good result.
Spiked tyres did the job!!

Now the spring is coming and my plan was to make a big service when i reached 5000km.
I never got to 5000.......
I thought the rear tyre was a little bit soft but it was not the tire, it was the rim :-(

Unbelivable!!!!!
The rim was complete wasted.....
The rim was split in the joint and the spokes almost jumped out of the worn holes.....

The rim also had cracks in almost every spoke-hole.
I had to make my big service a little bit earlier than planned.

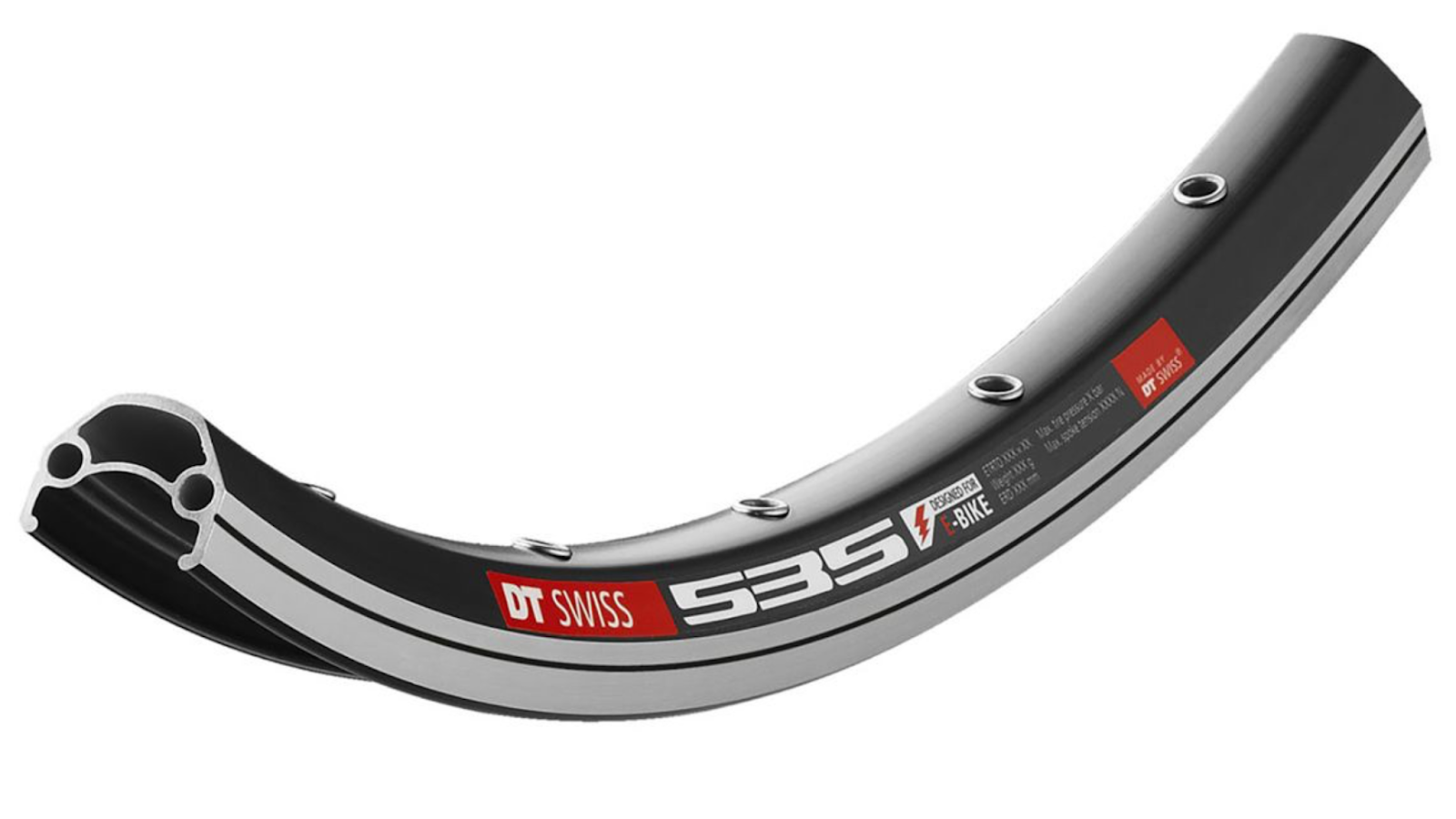

After some searching I found a new rim at ROSE BIKE.

Specially designed for E-bikes...... my ass it is!!!!
I had to drill up all spoke-holes from 4,5 to 4,9mm to make it possible to fit the spoke nipples.

It took 4 hours to replace the rim. I changed the rear sprockets at the same time :-)
I changed the chain and the derallieur as well :-)

I also changed the cover for the front brake wire, new breaking pads front and rear, new pedals new tires and some reflexes in the wheels.

.
After this I tried the bike and i was just flying :-)
Lets see how it works tomorrow!!!


Price 15 000 Sek-Refund from the swedish gouvernment 3500kr= 11500kr

Mudguard 100 Sek
Lock 50 Sek
Saddle 100Sek
Tyre 80 Sek¨
Hose 40 Sek
Break pads 120 Sek
Extender steering bar 100sek
Tyre+hose 180sek
Front lamp 90sek
New front lamp Biltema 140 Sek
2 Suomi spiked tyres 800Sek
Rear view mirror 350kr
Tyre 125 Sek
Chain (Biltema nr 27404) 50kr
Rear sprockets 116 kr (Aliexpress)
Rear rim 277kr
Derallieur 166kr
Pedals 109kr
Parts total: 2993Sek

#stealth 1000w Cyclotricity

181126 WINTER IS COMING 3209km

The winter is now starting to enter Sweden......
This means spiked tyres. After some searching I found Suomi Tyres on the internet.
I paid 400Sek each. Today I made the first ride. Worked just fine!!
The temperature today was close to -5 degrees.
Now I am ready!!!

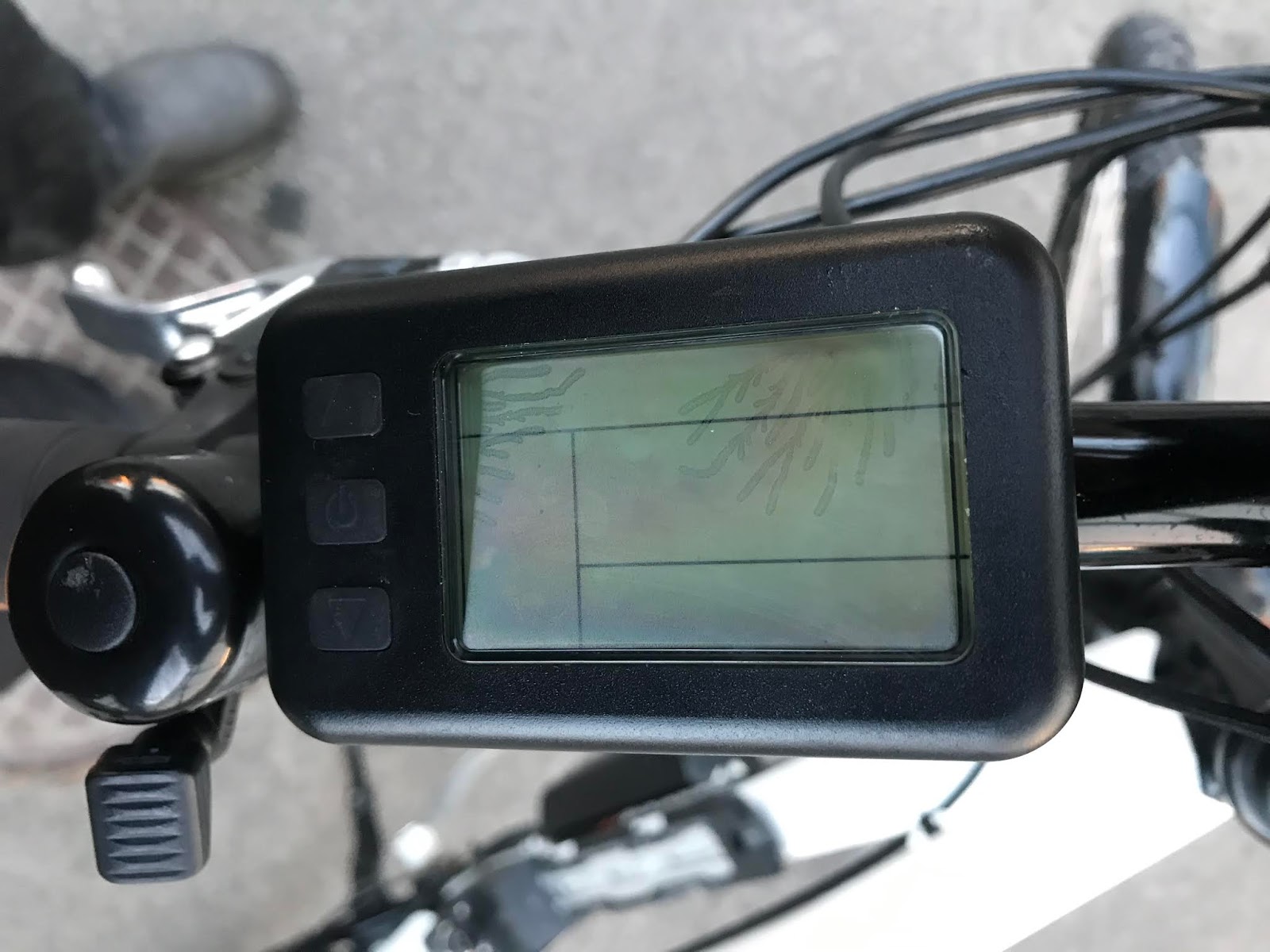

Still not a sound from cyclotricity about my water filled display.....
Some days I cant see anything but some days it looks really bad :-(
I will try to contact the Swedish retailer as well......

Price 15 000 Sek-Refund from the swedish gouvernment 3500kr= 11500kr

Mudguard 100 Sek
Lock 50 Sek
Saddle 100Sek
Tyre 80 Sek¨
Hose 40 Sek
Break pads 120 Sek
Extender steering bar 100sek
Tyre+hose 180sek
Front lamp 90sek
New front lamp Biltema 140 Sek
2 Suomi spiked tyres 800Sek
Parts total: 1800Sek

#stealth 1000w Cyclotricity

181112 BREAKDOWN NR 5, 2886km

And now it happened again :-(
On my way home from work I suddenly started to get this strange feeling when pedaling......
yepp, now the right side had come loose......
I had to use the throttle the last 10 kilometers. Without the throttle I would have been f-cked.
Back home I took it apart and assembled it again with loctite on both the shaft and the screw. Hopefully it will last longer now.

It makes me a little bit angry that the problems I have is related to bad assembly and not bad quality of the mechanical bits and pieces...
It would have been so easy to avoid problems like this!!!
Another problem that I discovered the other day is that the display has water on the inside :-(
I have sent a mail to Cyclotricity. Lets see what happens about that?

Except for all the breakdowns I love my bike :-)
I have now done more than 3000km which is nice. Soon it is paid off :-)

Price 15 000 Sek-Refund from the swedish gouvernment 3500kr= 11500kr

Mudguard 100 Sek
Lock 50 Sek
Saddle 100Sek
Tyre 80 Sek¨
Hose 40 Sek
Break pads 120 Sek
Extender steering bar 100sek
Tyre+hose 180sek
Front lamp 90sek
Parts total: 860Sek

#stealth 1000w Cyclotricity

181005 Breakdown nr 4 2000km

Now Everything has been working just fine for almost 1000km!!!
When the bike is working it is wonderful :-)
The bad thing is that this is not always the case..........
Now I suddenly had a couple of bad days again :-(
When going to work on Friday the pedal + arm came loose. I had to go to work with the throttle only.
Due to heavy winds I had to slow down to save battery. It took me 20 minutes extra!!!
This is the 4th time this happens!!! Now I have used loctite both on the shaft and the screw. Hopefully it will be ok now?

This was on Friday. When going to work on Monday this happened......

My mother was kind to help me. I had a big snake bite :-( My fault......
Now I bought new stuff at Biltema. Extra strong tyre. We will see ;-)

A-N-D I got my new lamp :-)
The light is fantastic!!!
10 dollar!! Perfect!!

Now it is alive again :-)

Price 15 000 Sek-Refund from the swedish gouvernment 3500kr= 11500kr

Mudguard 100 Sek
Lock 50 Sek
Saddle 100Sek
Tyre 80 Sek¨
Hose 40 Sek
Break pads 120 Sek
Extender steering bar 100sek
Tyre+hose 180sek
Front lamp 90sek
Parts total: 860Sek

#stealth 1000w Cyclotricity
